Description

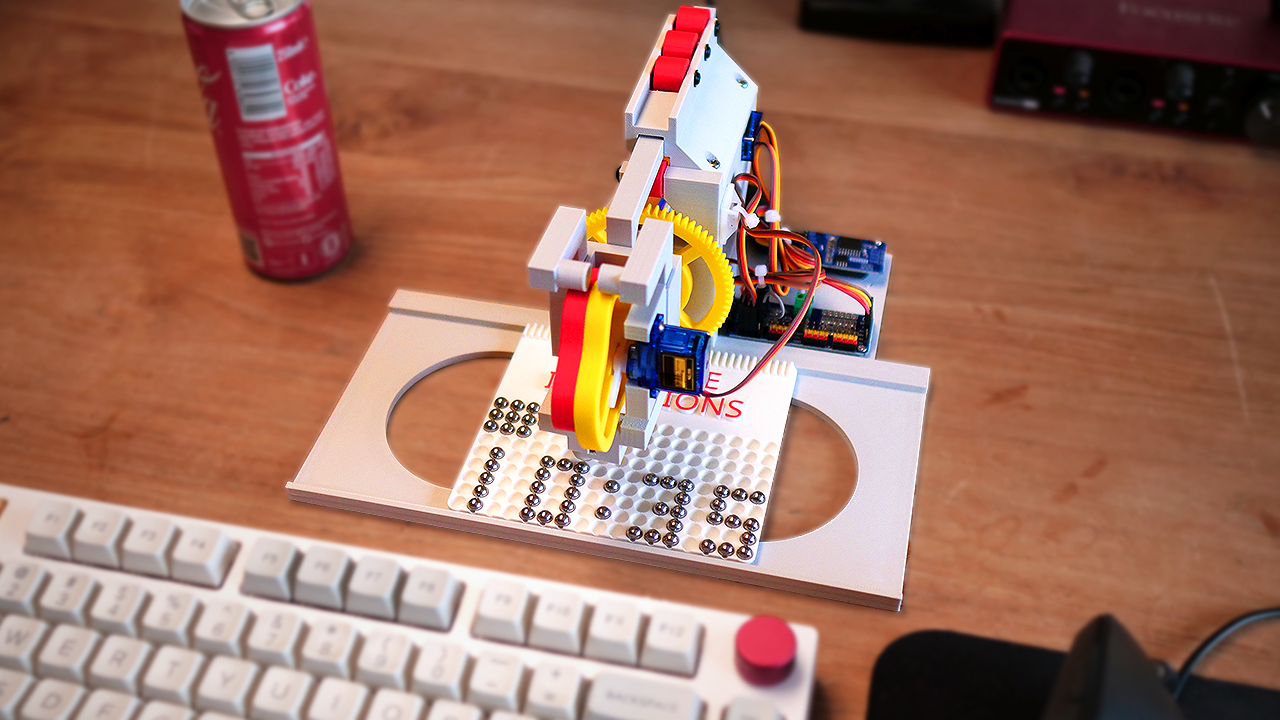

This is the complete digital package for the Tiny Marble Clock.

Included:

• All 3D print files (STL)
• The original FreeCAD design file
• The full source code
• No documentation or notes

Important

This is not a kit.
This is not a step-by-step build guide.
And this is definitely not beginner-friendly.

The files are exactly as used in the project.
That means:

• The FreeCAD file is not cleanly structured
• The code is functional, but not beautifully organized
• Some design decisions are iterative and experimental

This package is intended for people who:

• Enjoy digging through real-world engineering projects
• Want to study how the mechanism works
• Like reverse engineering and improving things
• Or simply want to support the channel

If you are looking for a polished product or guided experience, this is not it.

If you want the raw mechanics behind a €21 3-axis pick-and-place marble clock, you’re in the right place.

Bill of Materials

• 3D prints from the download
• 1 magnet (1.77 mm thick, 3.70 mm wide, 11.50 mm long, once sold as “12x4x2mm magnets”)
• Servos SG90: 3x€1,25
• 3D print filament: €6,74
• Assorted screws (M1.4, M2 and M3): €1,00
• Microcontroller Arduino Nano: €2,97
• Servo Controller PCA9685PW: €2,60
• Real Time Clock DS3231: €2,32
• Dupont wires: €0,50
• Marbles (6mm diameter, 3×17=51 pieces): €1,85

Total cost: €21,73
